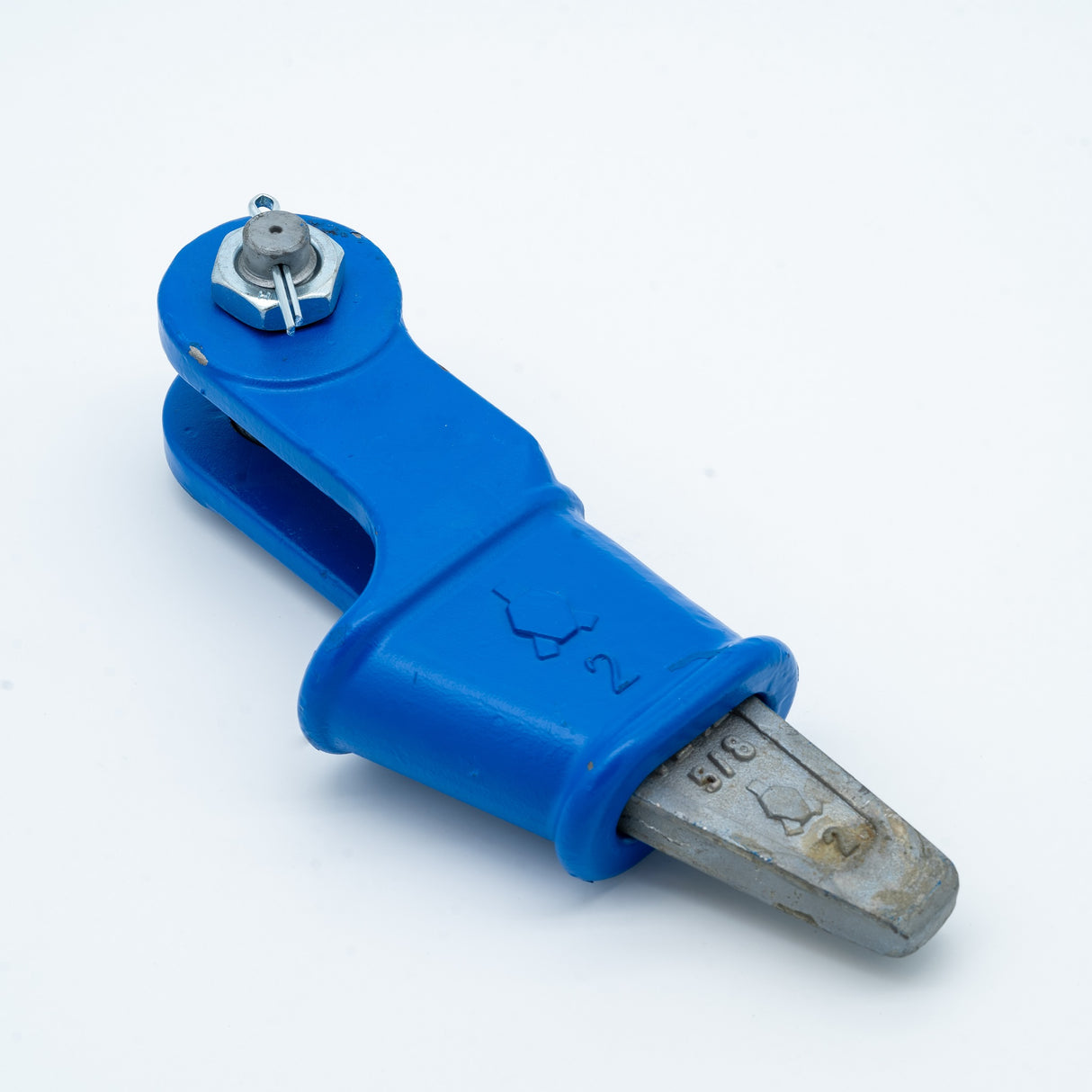

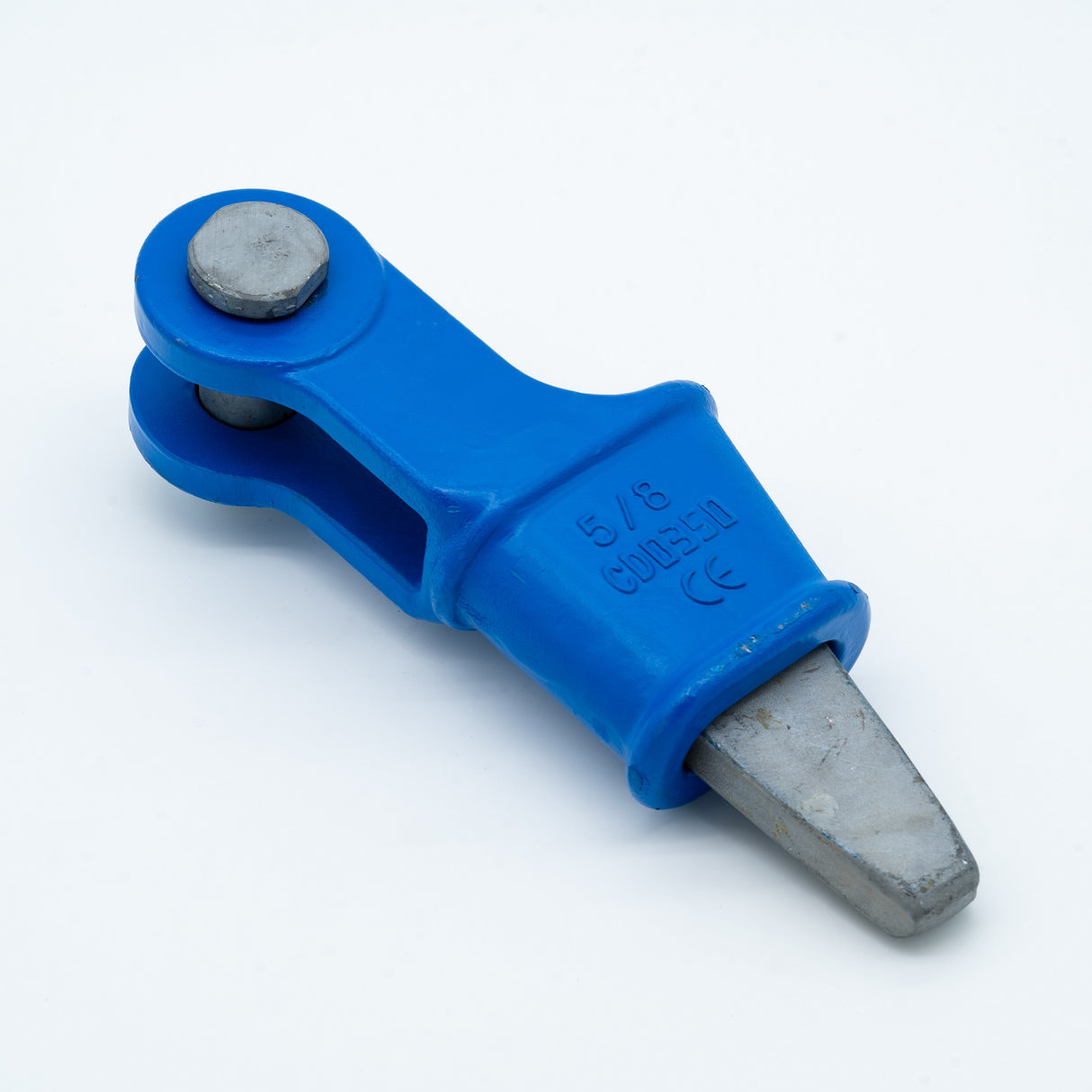

OWS B - klínová svorka barvená, s maticí a závlačkou
Od
1 453,00 Kč bez DPH
Jednotková cena bez DPH
/
Nedostupné
OWS B - klínová svorka barvená, s maticí a závlačkou
Pevnost (minimální síla při přetržení) označuje minimální sílu nebo hmotnost břemene, které způsobí selhání výrobku.
V souladu s požadavky směrnice 2006/42/EC a technické normy ČSN EN 13411-6+A1.
| Typ | Pevnost | Pro lano | A | B | C | P | T | TL | TB | W | Hmotnost |
| --- | t | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg |
| 0,25 | 8 | 7-8 | 110,0 | 18,0 | 36 | 16,0 | 9 | 128,0 | 62 | 18,0 | 0,8 |
| 0,5 | 12 | 9-10 | 145,0 | 23,0 | 46 | 20,6 | 11 | 168,0 | 75 | 20,5 | 1,7 |
| 1 | 20 | 11-13 | 146,0 | 28,5 | 57 | 25,0 | 12 | 174,5 | 80 | 25,0 | 2,1 |
| 2 | 25 | 14-16 | 176,0 | 35,0 | 70 | 30,0 | 15 | 211,0 | 96 | 31,0 | 4,0 |
| 3 | 40 | 18-19 | 210,0 | 40,0 | 80 | 35,0 | 16 | 250,0 | 107 | 38,0 | 7,0 |
| 4 | 55 | 20-22 | 237,5 | 47,5 | 95 | 41,0 | 18 | 285,0 | 123 | 44,0 | 10,0 |
| 5 | 75 | 24-26 | 275,0 | 55,0 | 110 | 51,0 | 22 | 330,0 | 138 | 51,0 | 15,0 |
| 6 | 90 | 27-29 | 310,0 | 65,0 | 130 | 57,0 | 25 | 375,0 | 160 | 57,0 | 21,0 |
| 7 | 110 | 30-32 | 350,0 | 73,0 | 146 | 63,0 | 28 | 423,0 | 165 | 63,0 | 31,0 |
| 8 | 125 | 34-36 | 400,0 | 74,0 | 148 | 64,0 | 28 | 474,0 | 185 | 70,0 | 37,0 |
| 9 | 150 | 37-39 | 450,0 | 80,0 | 142 | 70,0 | 30 | 530,0 | 201 | 77,0 | 51,0 |
| 10 | 170 | 40-42 | 500,0 | 87,0 | 160 | 76,0 | 33 | 587,0 | 209 | 76,0 | 64,0 |
| 11 | 225 | 43-48 | 550,0 | 100,0 | 186 | 89,0 | 39 | 650,0 | 237 | 89,0 | 96,0 |
| 12 | 280 | 49-52 | 640,0 | 105,0 | 205 | 95,0 | 46 | 745,0 | 263 | 101,0 | 130,0 |
| 13 | 360 | 54-58 | 660,0 | 125,0 | 250 | 108,0 | 54 | 785,0 | 298 | 114,0 | 180,0 |
| 14 | 425 | 60-68 | 835,0 | 135,0 | 270 | 121,0 | 60 | 970,0 | 330 | 127,0 | 275,0 |
| 15 | 460 | 72-76 | 1000,0 | 150,0 | 300 | 133,0 | 76 | 1150,0 | 380 | 146,0 | 440,0 |
| 16 | 625 | 81-86 | 1100,0 | 150,0 | 300 | 140,0 | 79 | 1250,0 | 397 | 159,0 | 510,0 |
