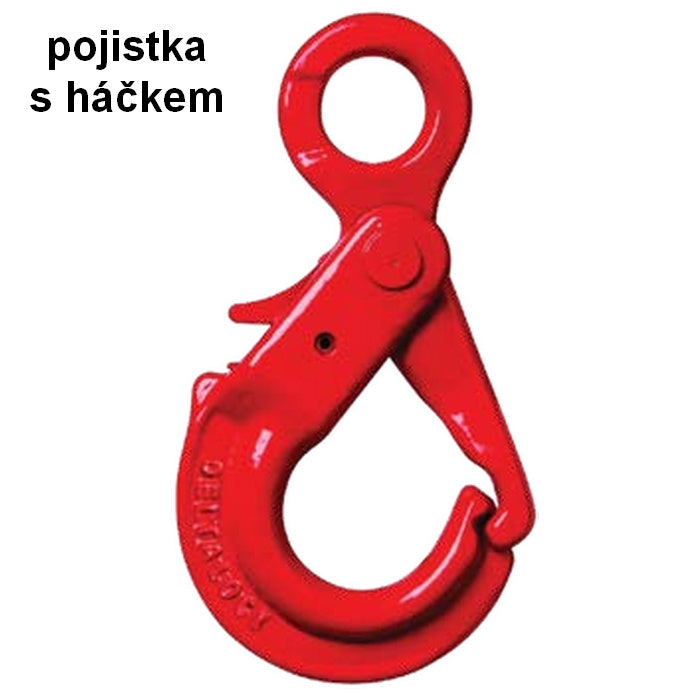

Samosvorný hák s okem a úchytem D
Od
268,00 Kč bez DPH
Jednotková cena bez DPH
/
Nedostupné
Samosvorný hák s okem a úchytem D

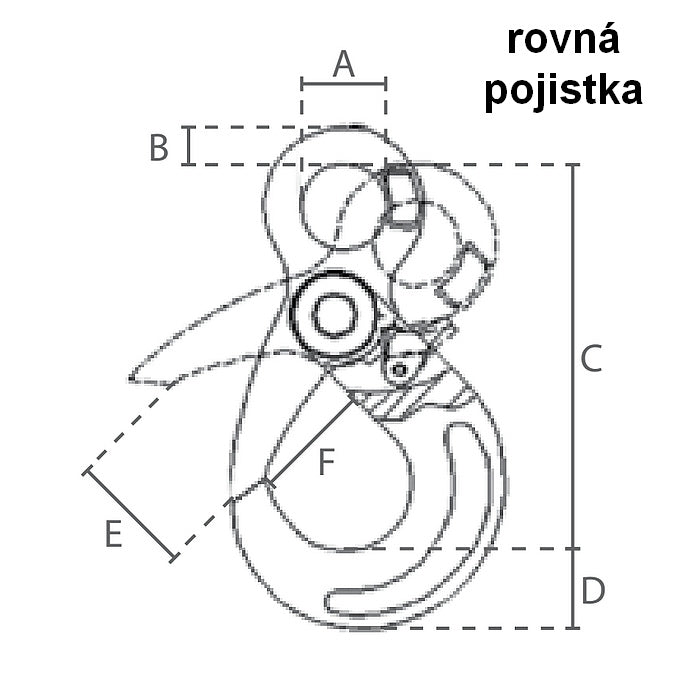

| Kód | Nosnost | A | B | C | D | E | F | Hmotnost |
| --- | t | mm | mm | mm | mm | mm | mm | kg |
| YE.8.025.06 | 1,12 | 21 | 10 | 110 | 20 | 35 | 28 | 0,5 |
| YE.8.025.20 | 12,50 | 65 | 27 | 275 | 55 | 80 | 86 | 7,0 |
| YE.8.025.22 | 15,00 | 70 | 30 | 319 | 67 | 83 | 76 | 12,3 |
| YE.8.025.26 | 21,20 | 80 | 34 | 362 | 75 | 106 | 96 | 20,0 |
| YE.8.025.32 | 31,50 | 105 | 45 | 470 | 97 | 140 | 133 | 44,0 |
| Kód | Nosnost | A | B | C | D | E | F | Hmotnost |
| --- | t | mm | mm | mm | mm | mm | mm | kg |
| YE.8.025.08 | 2,00 | 25 | 12 | 136 | 26 | 40 | 35 | 0,9 |
| YE.8.025.10 | 3,15 | 35 | 14 | 168 | 30 | 50 | 45 | 1,6 |
| YE.8.025.13 | 5,30 | 40 | 20 | 207 | 41 | 60 | 53 | 3,0 |
| YE.8.025.16 | 8,00 | 50 | 26 | 254 | 51 | 65 | 64 | 5,9 |
