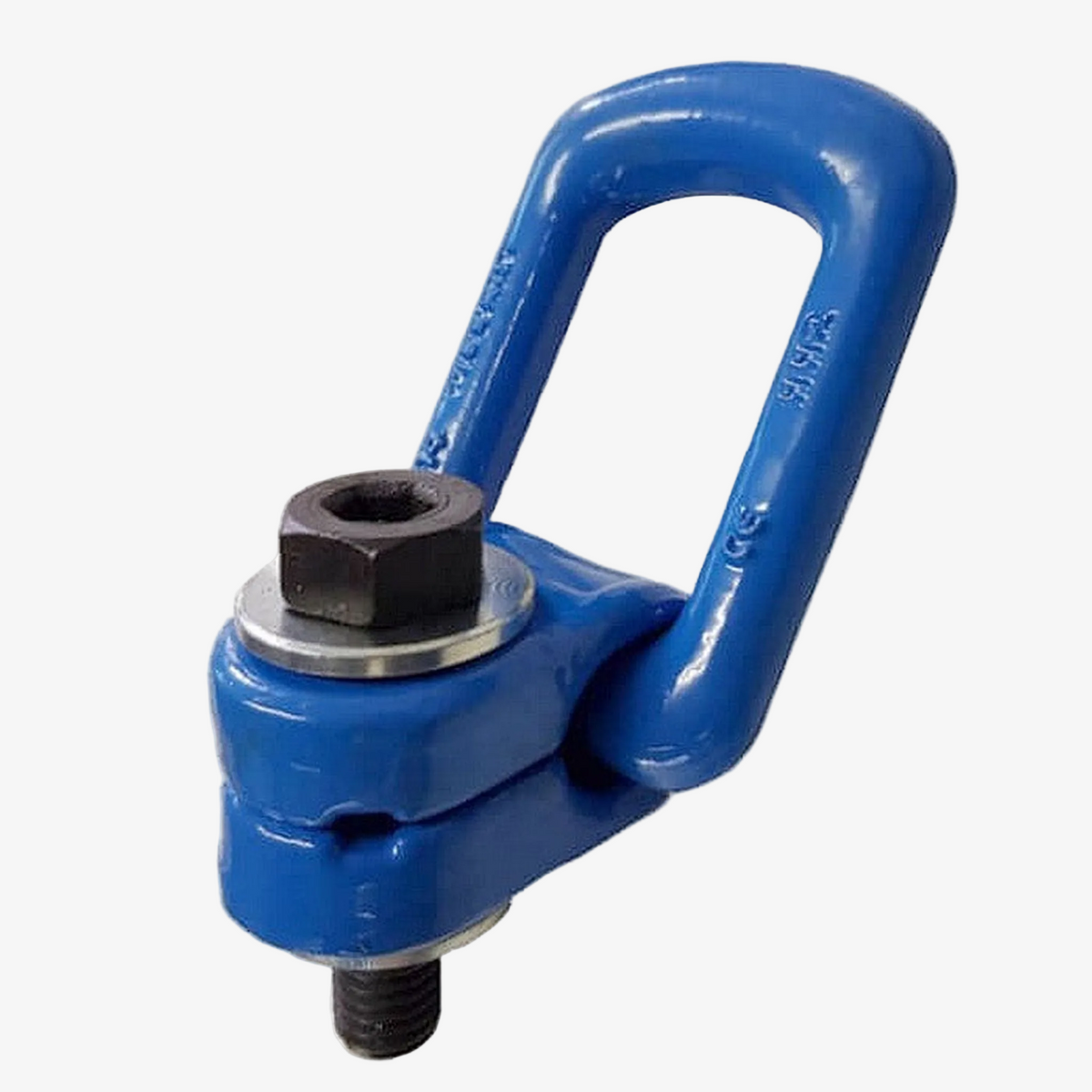

Vázací bod AW-LBO
Od
467,00 Kč bez DPH
Jednotková cena bez DPH
/
Nedostupné
Vázací bod AW-LBO
Snadná montáž.
Otočný o 360°.
Zvedací oko je otočné o 90°.
Maximální nosnost při 90°.
Pevnostní třída 10.
Splňuje normy:
DIN EN 10204:2004
DIN EN 1677-1:2009-03
GS MO 15-04
| Typ | Závit | WLL | A | B | C | A Φ | E | F | G | H | SW | S | Utahovací moment |
| --- | --- | t | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | Nm |
| AW-LBO M08x11- 300KG |
M8x11 | 0,3 | 30 | 35 | 35 | 14 | 11 | 85 | 55 | 29 | 13 | 6 | 30 |
| AW-LBO M10x16- 630KG |
M10x16 | 0,63 | 30 | 35 | 36 | 14 | 16 | 85 | 55 | 29 | 17 | 6 | 60 |
| AW-LBO M12x18- 1000KG |
M12x18 | 1 | 36 | 40 | 44 | 18 | 18 | 98 | 68 | 36 | 19 | 8 | 100 |
| AW-LBO M14x21- 1200KG |
M14x21 | 1,2 | 36 | 40 | 45 | 18 | 21 | 98 | 68 | 36 | 22 | 10 | 120 |
| AW-LBO M16x24- 1500KG |
M16x24 | 1,5 | 36 | 40 | 46 | 18 | 24 | 98 | 68 | 36 | 24 | 10 | 150 |
| AW-LBO M18x26- 2000KG |
M18x26 | 2 | 50 | 54 | 57 | 16 | 26 | 126 | 83 | 43 | 30 | 12 | 200 |
| AW-LBO M20x30- 2500KG |
M20x30 | 2,5 | 50 | 54 | 57 | 16 | 30 | 126 | 83 | 43 | 30 | 12 | 250 |
| AW-LBO M24x35- 4000KG |
M24x35 | 4 | 50 | 54 | 59 | 16 | 35 | 126 | 83 | 43 | 36 | 14 | 400 |
| AW-LBO M27x38- 4000KG |
M27x38 | 4 | 68 | 73 | 82 | 27 | 38 | 178 | 119 | 65 | 41 | 17 | 400 |
| AW-LBO M30x48- 5000KG |
M30x48 | 5 | 68 | 73 | 84 | 27 | 48 | 178 | 119 | 65 | 46 | 17 | 500 |
| AW-LBO M36x54- 7000KG |
M36x54 | 7 | 68 | 73 | 88 | 27 | 54 | 178 | 119 | 65 | 55 | 22 | 700 |
| AW-LBO M36x62- 8000KG |
M36x62 | 8 | 86 | 94 | 101 | 31 | 62 | 225 | 148 | 78 | 55 | 22 | 800 |
| AW-LBO M42x72- 10000KG |
M42x72 | 10 | 86 | 94 | 104 | 31 | 72 | 225 | 148 | 78 | 65 | 24 | 1000 |
| AW-LBO M42x63- 15000KG |
M42x63 | 15 | 95 | 104 | 116 | 40 | 63 | 259 | 176 | 90 | 65 | 24 | 1500 |
| AW-LBO M48x72- 20000KG |
M48x72 | 20 | 95 | 104 | 120 | 40 | 72 | 259 | 176 | 90 | 75 | 27 | 2000 |
